Machine data
Producer: WENZEL

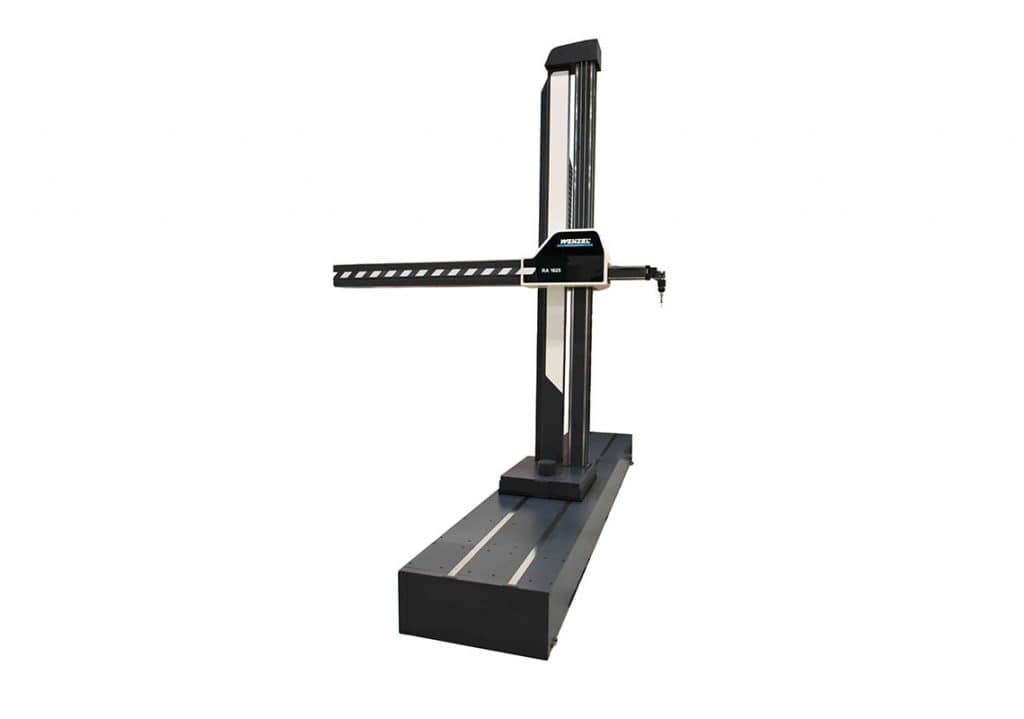

Type: RA 1625
Year of construction: 2025
Location: WENZEL
Measurement range
X-axis [mm]: 6600
Y-axis [mm]: 1600
Z axis [mm]: 2500
Measurement uncertainty
MPEE [μm]: 45 + L/35 ≤ 110 (L in mm)
MPEP [μm]: 35
Temperature range: 20° C ± 4 K
Temperature gradient: 1,0 K/h, 0,5 K/m, 2 K/d
In accordance with DIN EN ISO 10360-2
Equipment
Controller: WPC2040/3, HT400
Touch system option 1: PH10M-PLUS | 1x TP20Ni | 2 x SF Modul
Software option 1: WM | Quartis X3 FREEFORM
Accessories: PC system with Windows 11
Other option 1: 19-piece stylus set M2
Description
Current WPC2040/3 controller
New PC system
Current WM | Quartis X3 FREEFORM
PH10M-PLUS
